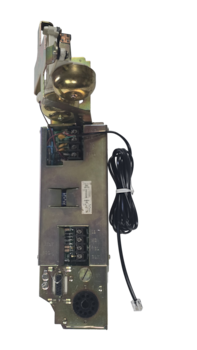

Western 32C Board
The 32C is a "dumb" (non-COCOT) circuit board manufactured by Elcotel for Western Electric/AT&T 1D2 payphones. It is considered the last of the original 1D series of boards, with manufacturing lasting until roughly 1989-1994
Unlike smart boards, the 32C has the ability to operate on a standard analog phone line and will function as a normal phone with no programming required.
- Line-Powered, requires no electricity.
- Compatible with most Western Electric / AT&T payphone housings.
- Includes Double-Gong Ringer.
- UL-listed.
- FCC Registered.
Telephone line powered. 42 VDC to 56 VDC
Loop current range: 22 mA to 90 mA
POTS line, (B-1 or COCOT), loop start, standard dial tone 600/120 Hz
Required Housing: Western Electric or AT&T style
Required Dial/Hookswitch Assy: Protel or Western with 11-pin male round connector
Required Coin Acceptor/Validator: Western 20A, 22A, 22B, or Mars LPV Required Coin Relay/Escrow: Western 1A Coin Relay/Hopper REFURBISHED
