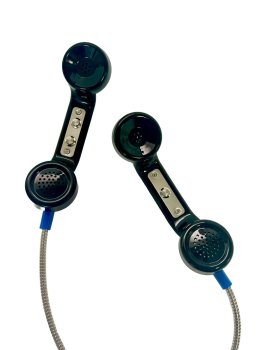

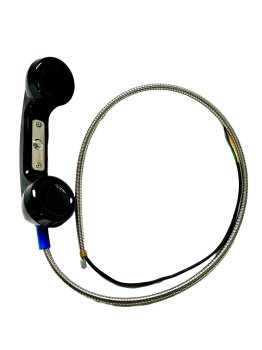

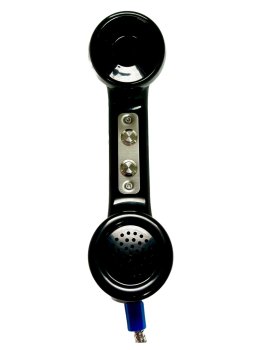

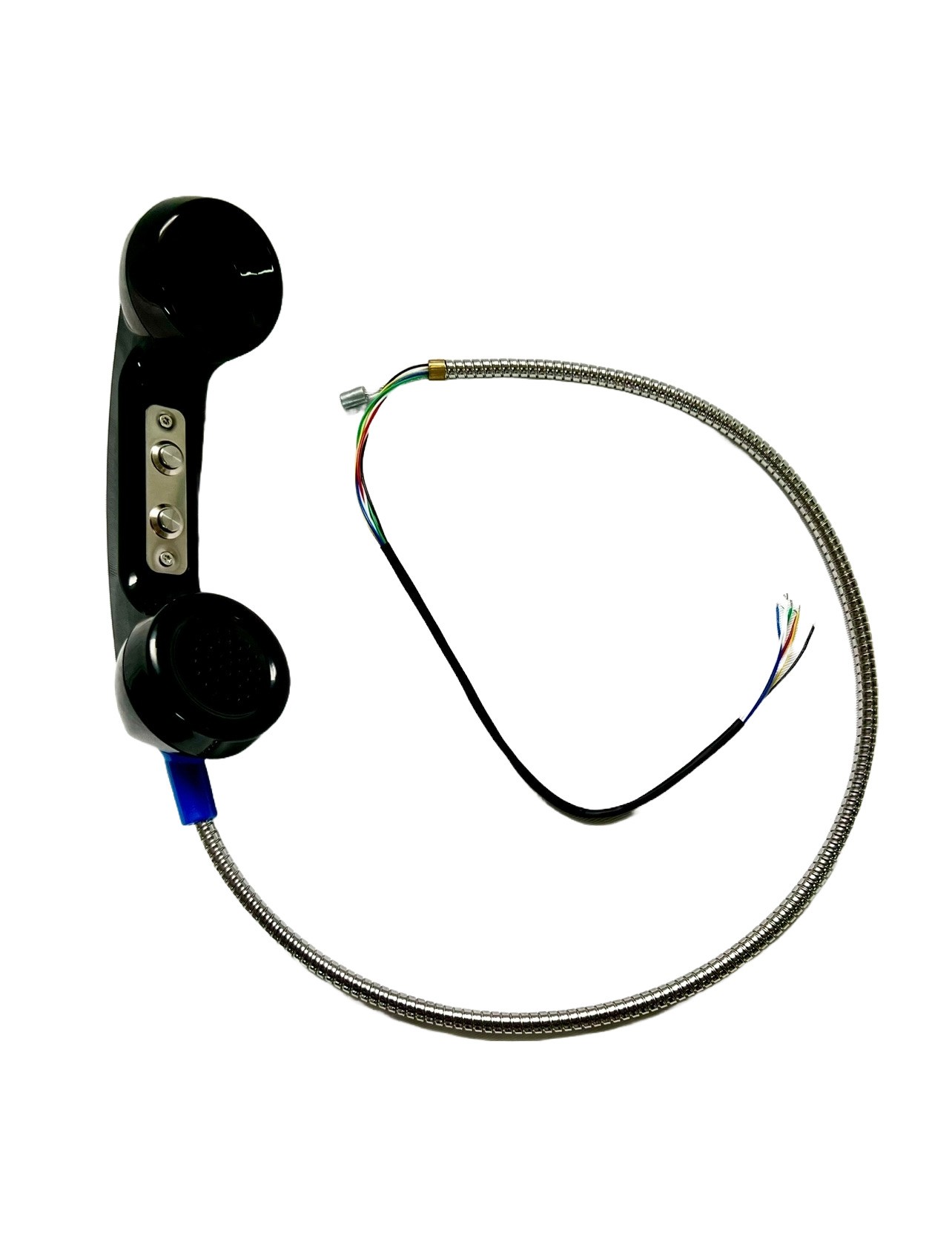

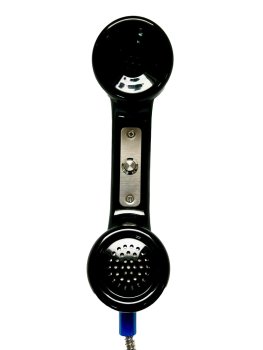

G-style Handset with Button(s)

The G-Style Handset with Button(s) is constructed of durable ABS plastic, high-strength stainless cord, steel lanyard, and vandal-resistant metal buttons. It is available in a wide variety of cord lengths and wire terminals.  It includes a high-quality receiver and electret-type microphone, with optional microphones available. All G-Tel G-style handsets are ideal for locations that need protection from vandalism.

MOQ: 90 units. Built-to-order, with custom colors, cord lengths, microphones, and wire terminals/plugs available. Call 1-800-884-4835 or complete the Contact Us form to inquire about custom handsets or request a volume quote.

Each handset consists of the following elements:
- Handset type: Standard Receiver and Electronic-based Carbon Transmitter
- Handset handle and cap material: ABS plastic
- Wiring: 6 and or 8 24-gauge Teflon-insulated wires (2 for receiver, 2 for transmitter, 2 or 4 for buttons) with single modular plug (Optional spade conductors)
- Armored Cord Assembly: 304 Stainless Steel, Interlock style. Inside Diameter, 0.250", 6.350mm. Outside Diameter, 0.329", 8.357mm. Linear Pull Test Load, 1000 lbs., 454 kg
- Includes a steel lanyard anchored to the handset handle. The steel lanyard has a pull test load of approximately 1000 lbs, 454 kgs.
- Available Cord Lengths: Cord Length: 24" (default).  Unlimited size options are available
- Color: Black
- Other Components: lanyard block retainer; anti-rotation wedge; transmitter holder; blue rubber grommet to seal handset/cord connection

Standard Receiver:
- DC Resistance at 20 degrees C: 145 ohm ± 15 ohm
- Frequency Response Range: 300-3400 Hz
- Sensitivity: 100 ohm ± 2 dB at 60mv
- Impedance: 150 ohm ± 30 ohm at 1 KHz

Electret-type transmitter
- Response Range: 300-3400 Hz
- Moveable Resistance:25-80 ohm at 50mA D.C

Handset caps are sealed with high-strength epoxy adhesive before shipping unless otherwise requested.
