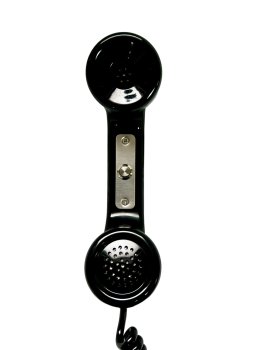

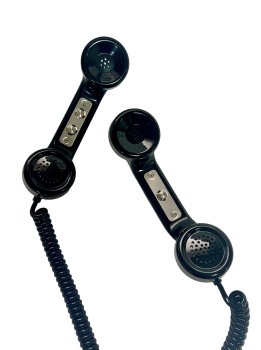

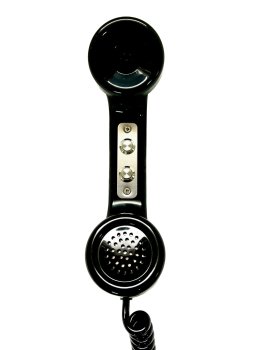

G-style Handset with Button(s) Curly Cord

The G-Style Curly Cord Handset with Button(s) is constructed of durable ABS plastic, high-strength Polyurethane curly cord, and vandal-resistant metal buttons. It is available in a wide variety of cord lengths and wire terminals.  It includes a high-quality receiver and electret-type microphone, with optional microphones available. All G-Tel G-style handsets are ideal for locations that need protection from vandalism.  For optimal security, see our armored cord version of this handset HERE

MOQ - 90 units and built-to-order, custom colors, cord lengths, microphones, and wire terminals/plugs are available. Call 1-800-884-4835 or complete the Contact Us form for custom handsets or volume quotes.

Each handset consists of the following elements:
- Handset type: Standard Receiver and Electronic-based Carbon Transmitter
- Handset handle and cap material: ABS plastic
- Wiring: 6 and or 8 24-gauge Teflon-insulated wires (2 for receiver, 2 for transmitter, 2 or 4 for buttons) with single modular plug (Optional spade conductors)
- Curly Cord Assembly: PU material high-strength curly cord, default length 230mm relaxed/2200mm stretched, unlimited size options available.
- Color: Black
- Other Components: Anti-rotation wedge; transmitter holder; rubber grommet to seal handset/cord connection

Standard Receiver:
- DC Resistance at 20 degrees C: 145 ohm ± 15 ohm
- Frequency Response Range: 300-3400 Hz
- Sensitivity: 100 ohm ± 2 dB at 60mv
- Impedance: 150 ohm ± 30 ohm at 1 KHz

Electret-type transmitter
- Response Range: 300-3400 Hz
- Moveable Resistance:25-80 ohm at 50mA D.C

Handset caps are sealed with high-strength epoxy adhesive before shipping unless otherwise requested.
