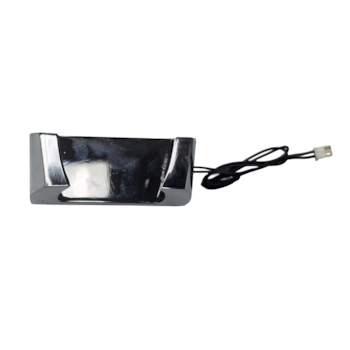

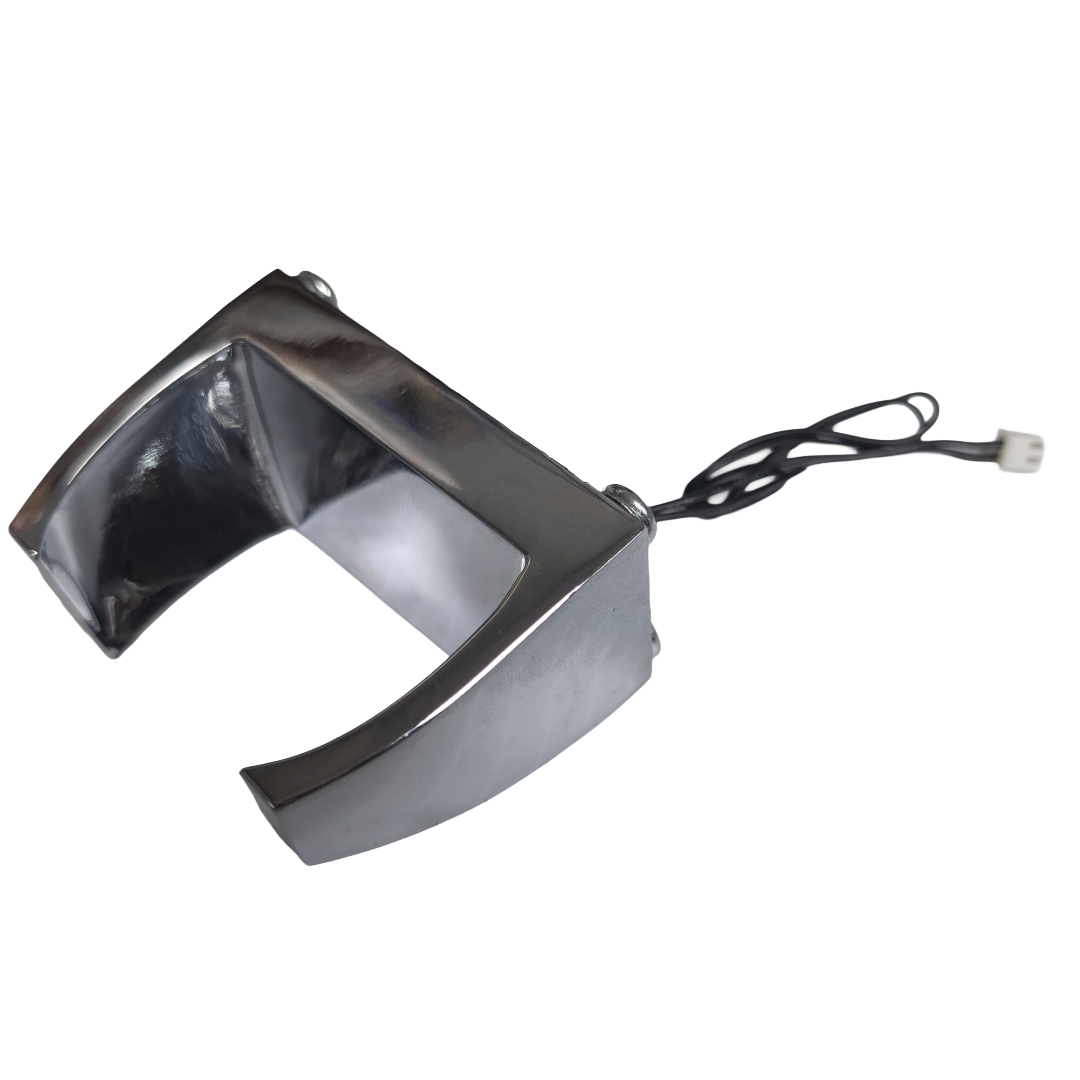

Magnetic Cradle Assy
The Cradle / Reed Switch Assembly uses a reed switch to detect the on/off-hook status of a telephone when used with a magnetic handset. Its simple, contactless design eliminates moving parts, providing reliable operation and reduced maintenance compared to traditional mechanical hookswitches.
The Cradle / Reed Switch Assy. uses a reed switch to signal the on/off-hook status of the telephone when a magnetic handset is used. This simple design has no moving parts, making it easier to maintain than traditional hookswitches that rely on a mechanical lever and micro switch.
- A Reed switch can be configured as “Normally Closed” or “Normally Open.”
- High-quality chrome finish
- No moving parts for low maintenance
- The Reed switch is easily replaceable with two screws
- Includes 6" wire with JST XH connector
- Reed Switch TypeNormally Closed, Normally Open, No Reed Switch Needed
- Extra fields
- Warranty1 Year
- Actual Dimensions2" x 3" x 1.5"
- Lead TimeUsually ships 1 to 3 business days
- MPN74-12021-MG
- Manufacturers
- ManufacturerG-TEL Enterprises, Inc.
Product questions
- Jan 22, 2024, 02:51 PM
Will this item work with JP-3500?
Jan 22, 2024, 03:26 PMYes, these are these are the same ones installed on the phone. Normally closed option
- Sep 7, 2023, 07:28 PM
what screws to use for the 4 mounting and the 2 mounting holes for the hook sensor PCB ?
Sep 8, 2023, 09:36 AMWe are transitioning to 10/24 screws for the mounting but we still have some with M5. For the reed switch it is still an M3
